Ruby 使用 Github Primer Design System 设计和 Github 风格一致的布局

memorycancel · 2025年01月01日 · 最后由 memorycancel 回复于 2025年01月01日 · 112 次阅读

primer 是 Github 开源设计框架,目的是对 github 设计经验进行输出。 极具设计美感,且对移动端、rails 生态天然友好。 先准备好环境:

node -v
# v23.5.0
ruby -v
# ruby 3.3.6 (2024-11-05 revision 75015d4c1f) [x86_64-linux]
rails -v
# Rails 8.0.1
mise -v
# 2024.10.7 linux-x64 (7d15bd5 2024-10-14)

创建项目。并且引入 Primer,参考步骤:https://primer.style/guides/rails 首先在 Gemfile 引入https://rubygems.org/gems/primer_view_components

gem 'primer_view_components', '~> 0.36.2'

执行:

bundle install -V
mise install nodejs
mise use -g [email protected]
npm install -g yarn
yarn init
yarn add @primer/view-components @primer/css @primer/primitives

在 config/application.rb 的最下方添加以下几行:

require "view_component"
require "primer/view_components"

因为rails v 8.0.0默认使用Propshaft作为前端管理框架,在 config/application.rb 中添加以下内容,将 node_modules/ 目录添加到 Propshaft 的加载路径中:

config.assets.paths << Rails.root.join("node_modules")

在 app/views/layouts/application.html.erb 中的

标记内添加以下内容。
<%= stylesheet_link_tag "@primer/css/dist/primer.css", "data-turbo-track": "reload" %>
<%= stylesheet_link_tag "@primer/view-components/app/assets/styles/primer_view_components.css", "data-turbo-track": "reload" %>
<%= stylesheet_link_tag "@primer/primitives/dist/css/primitives.css", "data-turbo-track": "reload" %>
<%= stylesheet_link_tag "@primer/primitives/dist/css/functional/themes/light.css", "data-turbo-track": "reload" %>
<%= stylesheet_link_tag "@primer/primitives/dist/css/functional/themes/dark.css", "data-turbo-track": "reload" %>
<%= javascript_include_tag "@primer/view-components/app/assets/javascripts/primer_view_components.js", "data-turbo-track": "reload" %>

创建一个主页 controller:

rails g controller main

main_controller.rb 添加 page action

def page
end

创建一个页面views/main/page.html.erb。添加一个布局,参考https://primer.style/components/layout/rails/alpha:

<%= render(Primer::Alpha::Layout.new(stacking_breakpoint: :md, gutter: :default, first_in_source: :main)) do |component| %>
  <% component.with_main(bg: :attention, p: 6) do %>
    <div style="background-color: red;"><h1>Main content</h1></div>
  <% end %>
  <% component.with_sidebar(bg: :accent, p: 6) do %>
    <div style="background-color: green;"><h1>Sidebar</h1></div>
  <% end %>
<% end %>

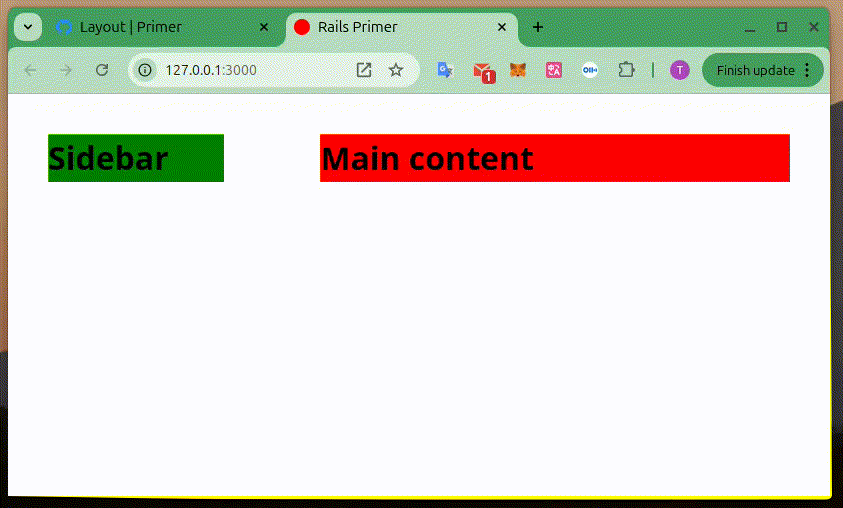

到这里,一个移动端兼容的响应式布局就完成了。 我们再将 sidebar 变成一个菜单导航列表,参考https://primer.style/components/nav-list 首先将上部分 <div style="background-color: green;"><h1>Sidebar</h1></div> 替换为一个patial:

<%= render(Primer::Alpha::Layout.new(stacking_breakpoint: :md, gutter: :default, first_in_source: :main)) do |component| %>
  <% component.with_main(bg: :attention, p: 6) do %>
    <div style="background-color: red;"><h1>Main content</h1></div>
  <% end %>
  <% component.with_sidebar(bg: :accent, p: 6) do %>
    <%= render 'sidebar_nav' %>
  <% end %>
<% end %>

编辑_sidebar_nav.html.erb:

<%= render(Primer::Beta::NavList.new(selected_item_id: :collaborators)) do |list| %>
  <% list.with_heading(title: "Repository settings") %>
  <% list.with_item(label: "General", href: "/general") do |item| %>
    <% item.with_leading_visual_icon(icon: :gear) %>
  <% end %>
  <% list.with_group do |group| %>
    <% group.with_heading(title: "Access") %>
    <% group.with_item(label: "Collaborators and teams", href: "/collaborators", selected_by_ids: :collaborators) do |item| %>
      <% item.with_leading_visual_icon(icon: :people) %>
    <% end %>
    <% group.with_item(label: "Moderation options") do |item| %>
      <% item.with_leading_visual_icon(icon: :"comment-discussion") %>
      <% item.with_item(label: "Interaction limits", href: "/interaction-limits", selected_by_ids: :interaction_limits) %>
      <% item.with_item(label: "Code review limits", href: "/review-limits", selected_by_ids: :code_review_limits) %>
      <% item.with_item(label: "Reported content", href: "/reported-content", selected_by_ids: :reported_content) %>
    <% end %>
  <% end %>
<% end %>

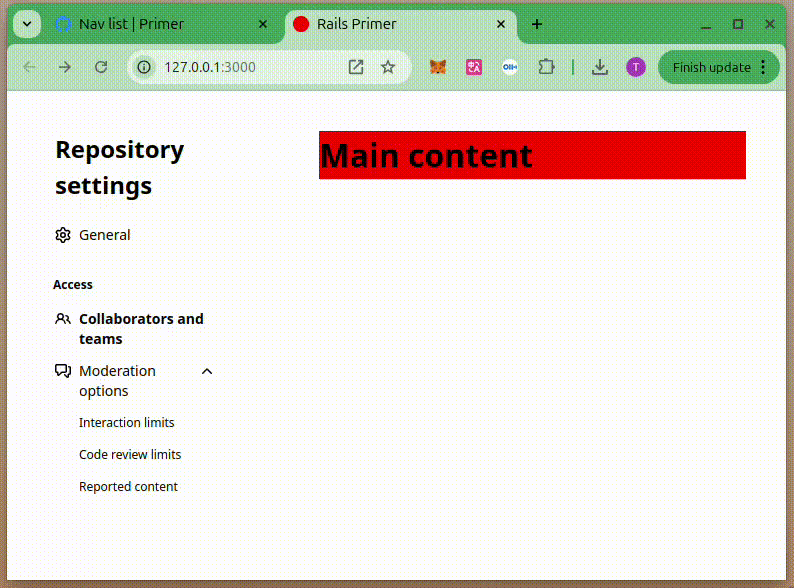

这样我们就可以做一个和 Github 风格一致的网站了,是不是很酷,嗯?

看着不错,只是离 stable 似乎还很遥远。生产环境不敢用。

Gao-Jun 回复

用了就是 stable 环境了😬
